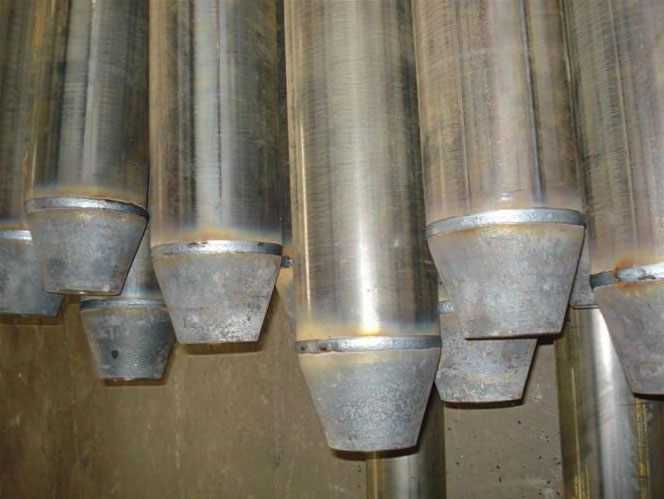

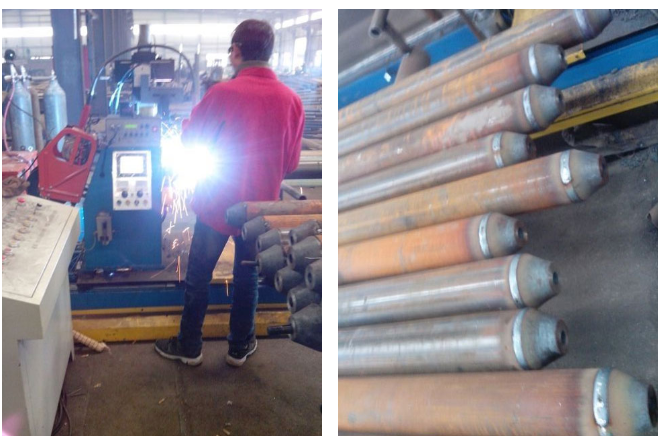

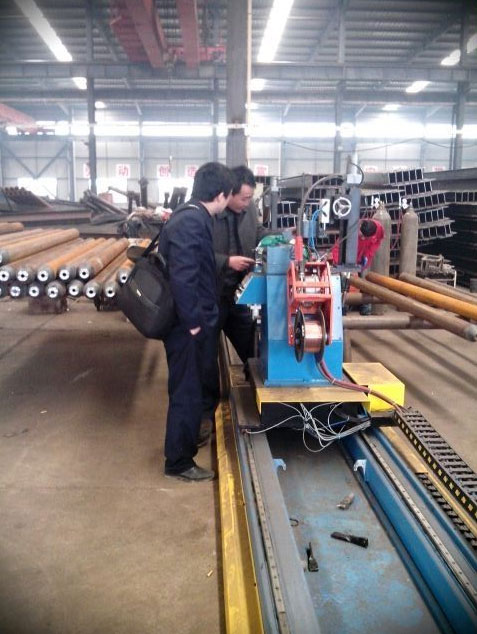

Body of wire framedouble gun automatic welding machine is assembled by steel metal,structureparts are anneal processed,quite stable and durable;It realizes welding gunswing welding,welding gun is adjusted by manual;Main and vice withstandingdevice is by hydraulic ,it will loose after welding finishes,lifting of workpiece adopts lead screw by manual.Length of body is 7.2 meters,and width is900mm,max welding gap could be 3-125px,length of work piece should be under 5.5meters,and diameter of work piece is 42mm-180mm





Rated loadingrate -----------------------------------60%

Inputcurrent------------------------------------------60～500A

Inputvoltage------------------------------------------16～45V

Suitable weldingwire---------------------------------￠1.2～￠1.6mm

Suitable workpiece-----------------------------------800～5500mm

Suitablediameter-------------------------------------￠42～￠180mm↗

Welding gunswing frequency----------------------300 times/min

Welding gunswing range---------------------------Max±25mm

Size of machine--------------------------------------7200×900×1200mm

Weight ofmachine-----------------------------------2000KG
